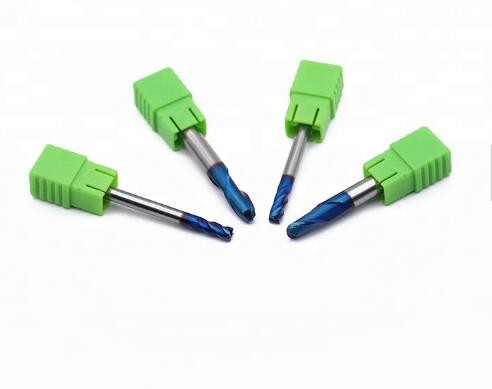

HRC65 Super Hard Cnc Penggilingan 4 lapisan Flute biru Tungsten Carbide End Mill
10pcs
MOQ
negotiable
harga
HRC65 Super Hard Cnc Milling 4 Flute blue coating Tungsten Carbide End Mill
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Informasi dasar
Tempat asal: Zhuzhou - Kota Carbide
Nama merek: Whitout Brand
Sertifikasi: ISO9001, SGS
Nomor model: sebagai persyaratan Anda
Cahaya Tinggi:

alat pemotong tungsten

,

tungsten karbida alat pemotong

Syarat-syarat pembayaran & pengiriman
Kemasan rincian: 1 PCS dalam tabung plastik, 10 PCS per grup
Waktu pengiriman: 15-25 hari kerja
Syarat-syarat pembayaran: T/T, Paypal, Western Union
Menyediakan kemampuan: 50000pcs/bulan
Spesifikasi
Helix sudut: 35 °, 45 °
Lingkup bisnis: OEM, Kustomisasi
Sertifikat: ISO9001
Mencoba peralatan: ZOLLER
Jenis mesin: , ROLLOMATIC, ANCA
Aplikasi: Penggilingan Machining
Deskripsi Produk
HRC65 Super Hard Cnc Penggilingan 4 lapisan Flute biru Tungsten Carbide End Mill

Pilihan HRC: HRC38-45, HRC45-50, HRC55-58, HRC60-62, HRC65-70

Pilihan lapisan: AITiN, AICrSiN, AITiCrSIN, TiSiN, NACO-BLUE

Bahan yang akan dipotong: baja asli, besi cor, Aluminium, tembaga, grafit, plastik,

Titanium, paduan, baja mengeras, baja tahan karat, HSS dll.

Kode no.

Diamter

d

Memotong panjang

l

Panjang total

L

Betis

D

Seruling

Z

4GW1-01003050 1 3 50 4 4
4GW1-01504050 1.5 4 50 4 4
4GW1-02050500 2 5 50 4 4
4GW1-02507050 2.5 7 50 4 4
4GW1-03008050 3 8 50 4 4
4GW1-04010050 4 10 50 4 4
4GW1-04015075 4 15 75 4 4
4GW1-04020100 4 20 100 4 4
4GW1-05013050 5 13 50 6 4
4GW1-06015050 6 15 50 6 4
4GW1-06020075 6 20 75 6 4
4GW1-06030100 6 30 100 6 4
4GW1-06020060 8 20 60 8 4
4GW1-08025075 8 25 75 8 4
4GW1-08035100 8 35 100 8 4
4GW1-010025075 10 25 75 10 4
4GW1-010040100 10 40 100 10 4
4GW1-012030075 12 30 75 12 4
4GW1-012040100 12 40 100 12 4
4GW1-014030080 14 30 80 14 4
4GW1-014100100 14 40 100 14 4
4GW1-016040100 16 40 100 16 4
4GW1-018040100 18 40 100 18 4
4GW1-020040100 20 40 100 20 4
4GW1-06040150 6 40 150 6 4
4GW1-08050150 8 50 150 8 4
4GW1-010050150 10 50 150 10 4
4GW1-012050150 12 50 150 12 4
4GW1-014060150 14 60 150 14 4
4GW1-016060150 16 60 150 16 4
4GW1-018060150 18 60 150 18 4
4GW1-020060150 20 60 150 20 4
